Insert A 3D Model In Word




You can now insert 3D models into Microsoft Word 2016. As if that wasn’t impressive enough, you can also rotate them to see them from different angles.

The following object formats are supported:

  • .fbx
  • .obj
  • .3mf
  • .ply
  • .stl
  • .glb

In the past you needed a 3D modelling application to render objects but now you can do it (in a limited way) in Word.

Inserting A 3D Object Into Word

On the Insert tab, in the Illustrations group, click 3D Models > From a File.

Insert A 3D Model

Navigate to where your 3D object is, select it and click Insert. Once inserted and still selected, you will see some handles with which to manipulate the object.




3D Handles

These handles look like the usual ones that allow you to resize and rotate an object. However, if you hover your mouse roughly over the centre of the object, you should see the cursor change shape to indicate that you can rotate the model in 3D space. Like this:

Rotate 3D Model

Once you have rotated the model, the 3D rotate handle will appear in the centre of the object and using this will make it easier to rotate the object.

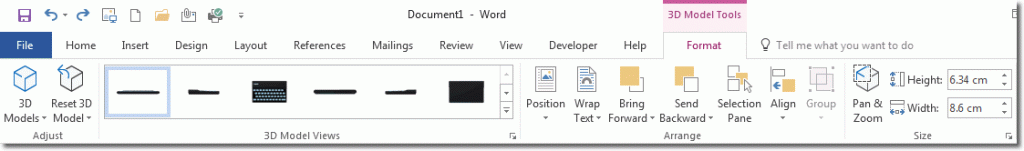

While the object is selected, you will see the 3D Model Tools contextual tab displayed in the ribbon.

3D Models Tab
Click To Enlarge

We’ll just cover the commands that you will probably use the most, and that aren’t related to general image manipulation.

  • Reset 3D Model – this command will return the object to its initial orientation.
  • 3D Model Views – this group provides some preset orientations for your model that show it from different angles. Use these commands if you don’t want to manually rotate the object yourself.

In addition to being able to insert 3D models into Word, you can also insert them into PowerPoint presentations. This is especially useful if you want to show your audience the object from different angles as part of your presentation.
